Are you looking for the TQ3010 Campbell Hausfeld Pump Parts? Then You have come to the right place.

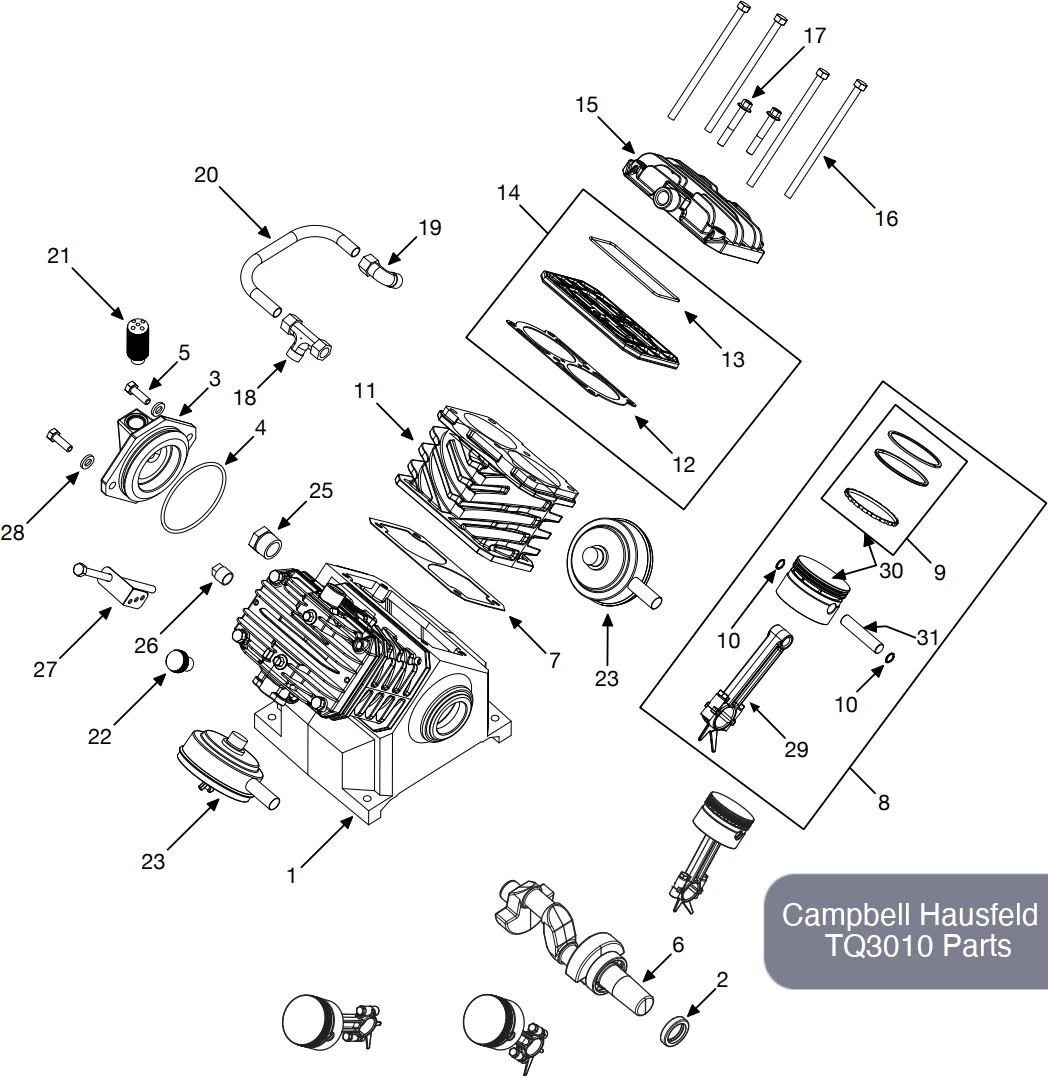

Pump TQ3010 Parts are parts for a single-stage, 5 HP air compressor pump that is used in Campbell Hausfeld 80 gal air compressor CE4104 and Kobalt 80 Gal Air Compressor, TQ312602 models. Here you can find full parts list for Campbell Hausfeld TQ3010 Pump (Campbell Hausfeld 80 Gal Air Compressor CE4104 parts, Kobalt 80 Gal Air Compressor, TQ312602 parts) and exploded view with the locations of each part of the pump.
Certainly! Here’s a table representing the given data:
| Ref. No. | Description | Part Number | Qty |
|---|---|---|---|
| 1 | CRANKCASE | TQ010001AV | 1 |
| 2 | OIL SEAL | ST120000AV | 1 |
| 3 | BEARING CAP | TQ010201AV | 1 |
| 4 | O-RING | l | 1 |
| 5 | HEX HEAD CAP SCREW M8 X 1-1/4 INCH X 25 MM | – | 2 |
| 6 | CRANKSHAFT AND BEARING ASSEMBLY | TQ900201AJ | 1 |
| 7 | CRANKCASE GASKET | l | 2 |
| 8 | CONNECTING ROD ASSEMBLY | n | 4 |
| 9 | PISTON RING SETS (TWO SETS) | VT911200AV n | 2 |
| 10 | INTERNAL RETAINING RING | n | 8 |
| 11 | CYLINDER | VT040915AV | 2 |
| 12 | CYLINDER GASKET | l | 2 |
| 13 | MOLDED O-RING | l | 2 |
| 14 | VALVE PLATE KIT | VT470800AJ | 2 |
| 15 | CYLINDER HEAD | s | 2 |
| 16 | HEX HEAD CAP SCREW M8 X 150 MM | s | 8 |
| 17 | FLANGE HEAD SCREW | s | 4 |
| 18 | EXHAUST TEE FITTING | TQ901100AV | 1 |
| 19 | EXHAUST ELBOW FITTING | TQ901200AV | 1 |
| 20 | EXHAUST TUBE | TQ901300AV | 1 |
| 21 | BREATHER | VH901100AV | 1 |
| 22 | OIL FILL PLUG | VH900800AV | 1 |
| 23 | AIR FILTER WITH ELEMENT | VH901700AV | 2 |
| 24 | AIR FILTER ELEMENT ONLY | VH901800AV | 2 |
| 25 | SIGHT GLASS | VH901000AV | 1 |
| 26 | PIPE PLUG 1/4 INCH NPT | ST072915AV | 1 |
| 27 | BELT GUARD BRACKET | TQ012000AV | 1 |
| 28 | BRASS WASHER | ST070925AV | 2 |
| 29 | CONNECTING ROD | TQ010901AJ | 4 |
| 30 | PISTON WITH RINGS KIT | TQ901700AV | 4 |
| 31 | WRIST PIN KIT (INCLUDES #10(2)) | TQ901800AV | 4 |
| Replacement Parts Kits | Description | Part Number |
|---|---|---|
| s | CYLINDER HEAD AND FASTENERS KIT | TQ900800AJ |
| n | CONNECTING ROD / PISTON RING ASSEMBLY KIT | TQ901500AV |
| l | GASKET KIT | TQ901001AJ |
If you need any help with finding the right part or installing it, you can contact their customer service or check their online manuals. Click here if you need parts list for Campbell Hausfeld CE4104 Model.
